DC Contactor DC66P MOTOR REVERSING - IP67

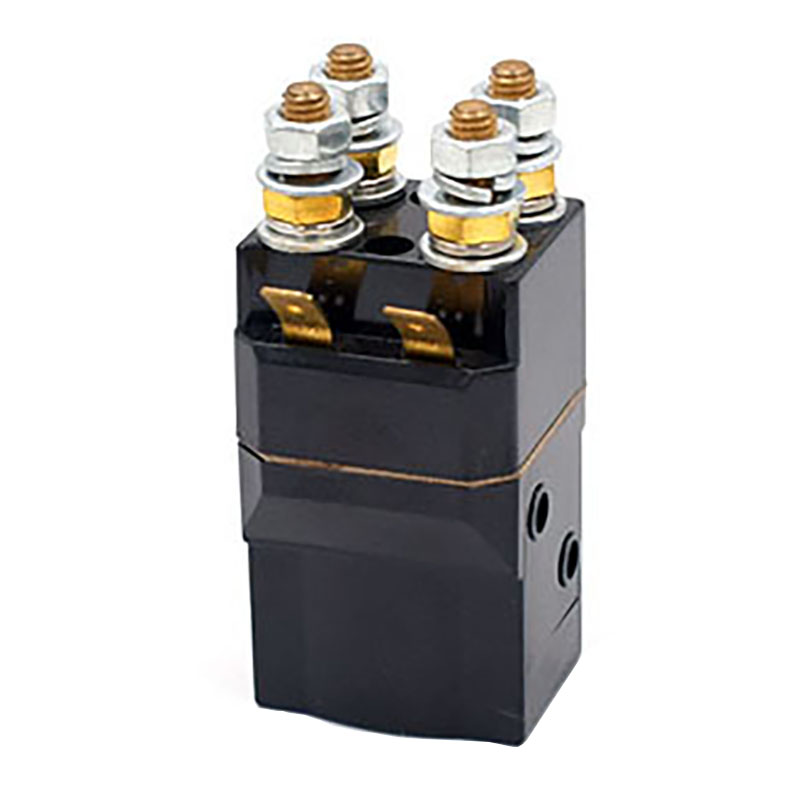

The DC66P is a compact contactor following the established design of our mono block contactors, configured specifically for motor reversing.  Suitable for Direct Current loads and compatible with modern electronic control systems, the DC66P is sealed to IP66 and is ideal for use in applications such as battery powered winches, vehicle mounted cranes and small electric vehicles.  Devised for both interrupted and uninterrupted loads, the DC66P is suitable for switching Resistive, Capacitive and Inductive loads.

The main contact circuit has a built in fail safe, so that if both coils are energised simultaneously the contact arrangement is open circuit.  The DC66P has double breaking main contacts with silver alloy tips, which are weld resistant, hard wearing and have excellent conductivity.  The DC66P has M6 main stud terminals and coil connections are by means of 6.3mm spades.

  • Product Detail

Application
InterruptedRating ( Ith )Uninterrupted
Thermal Current Rating 80A 80A
Intermittent Current Rating:
30% Duty 145A 145A
40% Duty 125A 125A
50% Duty 115A 115A
60% Duty 105A 105A
70% Duty 95A 95A
Rated Fault Current Breaking Capacity (Icn) 5ms Time Constant:
Blowouts -
No Blowouts 500A at 60V D.C.
Rated Fault Current Breaking Capacity (Icn) Resistive Load:
Blowouts -
No Blowouts 120A at 48V D.C.
Maximum Recommended Contact Voltages
Blowouts - -
No Blowouts 48V 48V
Typical Voltage Drop per pole across New Contacts at 80A 40mV
Mechanical Durability > 3,000,000 Cycles
Coil Voltage Available (Us) (Rectifier board required for A.C.) 6 - 130V
