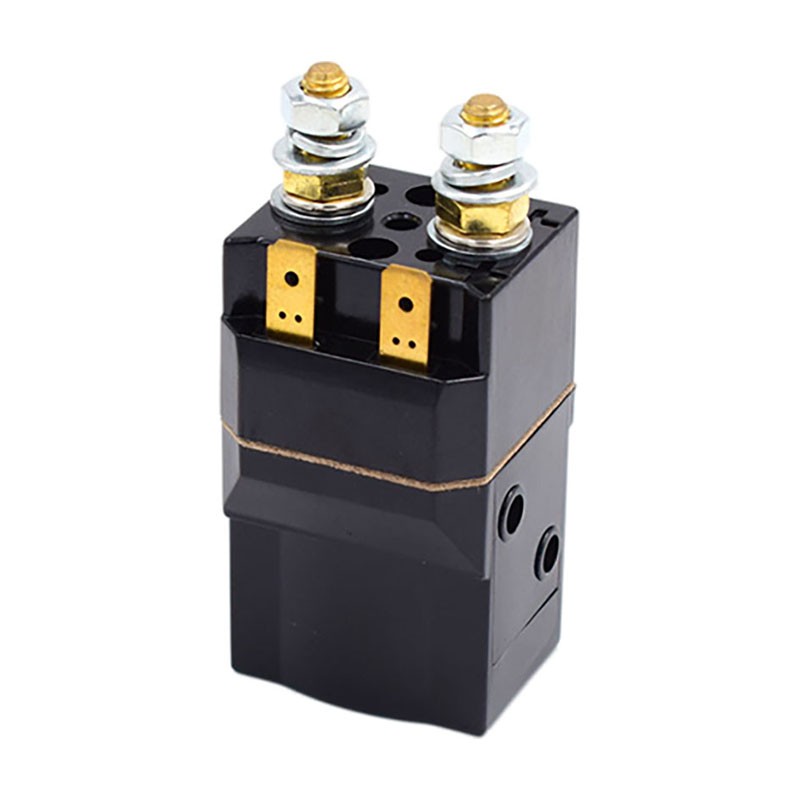

DC Contactor SW60 NO-SP-ST

The SW60 is a miniature series single pole contactor – free standing and compact it is designed to fill the gap between 30 ampere relays and 100 ampere contactors.  Devised for both interrupted and uninterrupted loads, the SW60 is suitable for switching Resistive, Capacitive and Inductive loads.  Typical applications include switching small traction motors, hydraulic power packs and small electric winch motors.

The SW60 features single pole double breaking main contacts with silver alloy tips, which are weld resistant, hard wearing and have excellent conductivity.  The SW60 has M6 stud main terminals and 6.3mm spade coil connections.  It can be mounted via M4 tapped holes or mounting brackets – either supplied fitted, or as separate items.  Mounting can be on the side or base of the contactor.

  • Product Detail

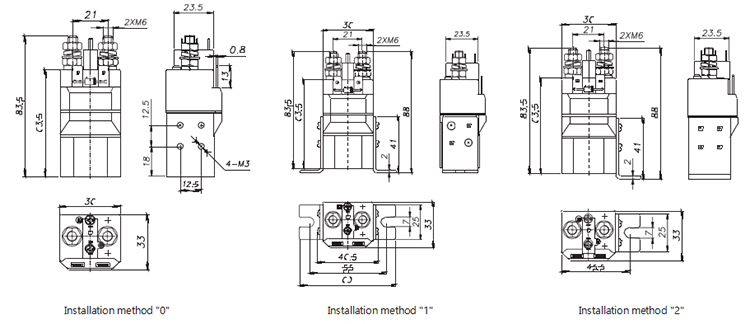

  • DIMENSION DRAWINGS
Application
InterruptedRating ( Ith )Uninterrupted
Thermal Current Rating 80A 80A
Intermittent Current Rating:
30% Duty 145A 145A
40% Duty 125A 125A
50% Duty 115A 115A
60% Duty 105A 105A
70% Duty 95A 95A
Rated Fault Current Breaking Capacity (Icn) 5ms Time Constant:
Blowouts 400A at 96V D.C.
No Blowouts 400A at 48V D.C.
Rated Fault Current Breaking Capacity (Icn) Resistive Load:
Blowouts 120A at 96V D.C.
No Blowouts 120A at 48V D.C.
Maximum Recommended Contact Voltages
Blowouts 96V 120V
No Blowouts 48V 60V
Typical Voltage Drop per pole across New Contacts at 80A 40mV
Mechanical Durability > 3,000,000 Cycles
Coil Voltage Available (Us) (Rectifier board required for A.C.) 6 - 130V
