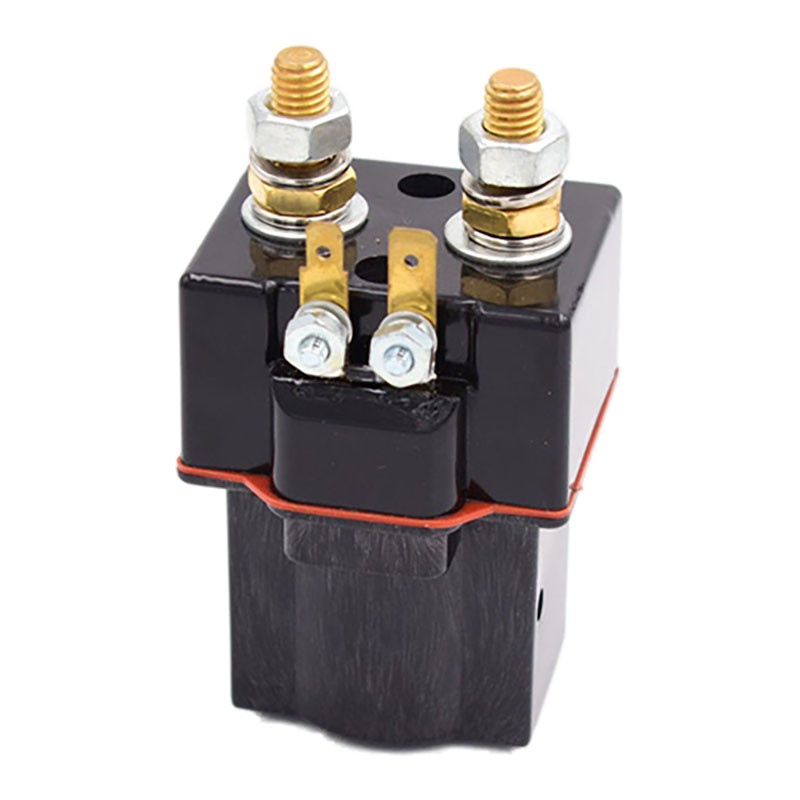

DC Contactor SW80P NO-SP-ST-IP66

The SW80P is sealed to IP66 and has been designed for direct current loads in more arduous environments.  Applications include winches and motors as used on electric vehicles such as industrial trucks.  Developed for both interrupted and uninterrupted loads, the SW80P is suitable for switching Resistive, Capacitive and Inductive loads.

The SW80P features single pole double breaking main contacts with silver alloy tips, which are weld resistant, hard wearing and have excellent conductivity.  The SW80P features an enclosed top cover and offers environmental protection to IP66. The SW80P has M8 stud main terminals and 6.3mm spade coil connections.  Mounted using supplied brackets, mounting can be horizontal or vertical, when vertical the M8 contact studs should point upwards.  If the requirement is for downwards orientation we can adjust the contactor to compensate for this.


  • Product Detail
Application
InterruptedRating ( Ith )Uninterrupted
Thermal Current Rating 100A 125A
Intermittent Current Rating:
30% Duty 185A 230A
40% Duty 160A 200A
50% Duty 140A 175A
60% Duty 130A 160A
70% Duty 120A 150A
Rated Fault Current Breaking Capacity (Icn) 5ms Time Constant:
Blowouts 600A at 96V D.C.
No Blowouts 600A at 48V D.C.
Rated Fault Current Breaking Capacity (Icn) Resistive Load:
Blowouts 190A at 96V D.C.
No Blowouts 190A at 60V D.C.
Maximum Recommended Contact Voltages
Blowouts 96V 96V
No Blowouts 48V 60V
Typical Voltage Drop per pole across New Contacts at 100A 40mV
Mechanical Durability > 5,000,000 Cycles
Coil Voltage Available (Us) (Rectifier board required for A.C.) 1 - 240V
