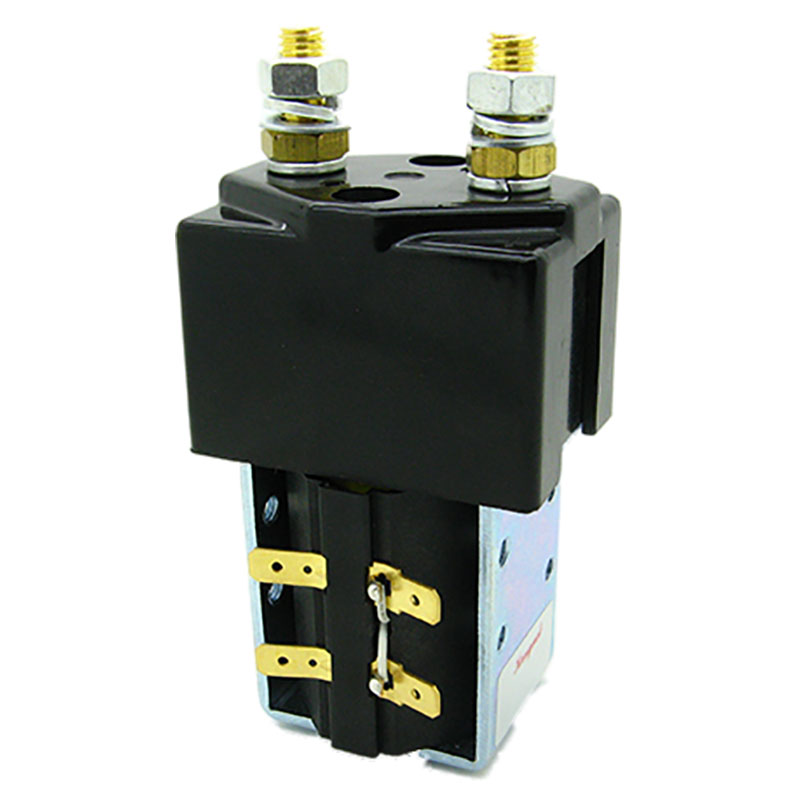

DC Contactor ZJ200A NO-SP-ST

The ZJ200A contactor is rated at 200 amperes with a normally open single pole single throw configuration.  The ZJ200A is suitable for applications including UPS and Telecom Power Systems, Electric Vehicles and Frequency Converters.

The ZJ200A features single pole double breaking main contacts with silver alloy tips, which are weld resistant, hard wearing and have excellent conductivity.  The ZJ200A has M8 main stud terminals and coil connections are by means of M4 terminals.  Silver plating is provided as standard and Coil driver options include Standard, Dual Coil and Magnetic Latching with auxiliary, coil suppression and bracket options available.

  • Product Detail
InterruptedRating ( Ith )Uninterrupted
Thermal Current Rating - 200A
Intermittent Current Rating:
30% Duty - 365A
40% Duty - 315A
50% Duty - 285A
60% Duty - 260A
70% Duty - 240A
Rated Fault Current Breaking Capacity (Icn) 5ms Time Constant:(In accordance with UL583*)
Blowouts -
No Blowouts -
Rated Fault Current Breaking Capacity (Icn) Resistive Load:(In accordance with UL508*)
Blowouts -
No Blowouts 300A at 60V D.C.
Maximum Recommended Contact Voltages
Blowouts - -
No Blowouts - 60V
Typical Voltage Drop per pole across New Contacts at 100A 30mV
Mechanical Durability > 1,000,000 Cycles
Coil Voltage Available (Us) (Rectifier board required for A.C.) 12 - 120V
