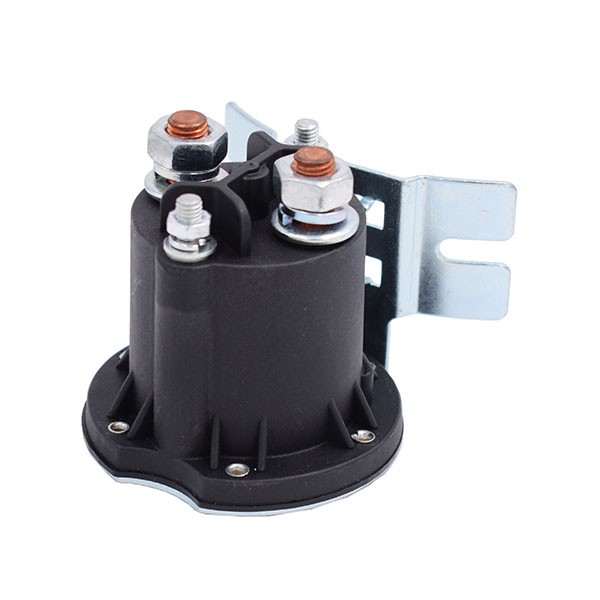

The PowerSeal family includes the intermittent and continuous duty versions of this product; each is utilized in their own distinct market spaces. Both the Intermittent and Continuous duty PowerSeals are certified for RoHS.
Intermittent Duty
- Carry Current 150 Amps, Inrush 800 Amps
- Available in 12 or 24 Volts
The power you need for high amperage applications along with the sealed construction gives the PowerSeal its name. The PowerSeal’s unique design gives it the longevity to last and be used in the harshest environmental conditions. Intermittent duty PowerSeals are used on hydraulic power packs, RVs, heavy truck starting and grid heaters, and lawn and garden applications.
Continuous Duty
- Current 150 Amps, Inrush 800 Amps (depending on voltage and design)
- Available in 12 volts, 15 volts, 24 volts, 36 volts, and 48 volts
The Continuous Duty PowerSeal is the first contactor designed specifically for electric vehicles and applications requiring resistance to tough environmental conditions. The environmental seal is the centerpiece of the optimized design for higher performance and lower cost.
| Basic Technical Parameters (at normal conditions) | |||
| Electric Parameters | |||
| Contact type |
One pair of bridge type moving open (NO) contacts |
Instantaneous maxi (closing) current | 800A, ≤1s |
| Rated voltage of contacts (DC) | ≤80V | Insulation resistance(MΩ) | ≥100 |
| Rated current of contacts (A) | 200 | Dielectric withstand voltage | 1500V,p.f. 1min, no breakdown |
| Voltage drop on contacts(mV) | ≤80(at 100A) | Electric cycles (104) | ≥2 |
| Coil voltage specification(DC) | 15V | Mechanical cycles (104) | ≥30 |
| DC power consumption of coil (W) | ≤9.0 | Temperature rise on outgoing terminal | ≤65 |
| Pickup voltage(DC) | ≤70%Ue(Positive power up) | Temperature rise of coil(K) | ≤85 |
| Release voltage(DC) | ≥5%Ue;≤40%Us | Insulation grade of enameled wire | Class B (130°C) |
| Pickup time(ms) | ≤30 | Material of contact | AgCuO(10)/Cu |
| Release time(ms) | ≤50 | Working duty | Continuous operating duty |
| Mechanical/Ambient Conditions | |||
|
Torque of outgoing terminal on contact M8(N.m) |
≯8.5N appropriate | Protection grade | IP50 |
| Coil lead end thickness(mm) | ≯1.2 appropriate | Mounting methods | Freely |
| Working temperature | (-25~+55)°C | Vibration | Sine shock: 2.5g, (5~50) Hz |
| Mounting altitude | ≤2Km | Impact | 50g,11ms(Half sine) |
| Conversion Table for Coil Specification(20°C) | |||
| Voltage(V) | Coil resistance(1±10%)Ω | Voltage(V) | Coil resistance(1±10%)Ω |
| 12 | 20.9 | 36 | 174 |
| 15 | 32 | 48 | 288.3 |
| 24 | 84.5 | 60 | 511 |
